Aluminum Die Casting: Process Guide 2024







Aluminum die casting is a versatile and efficient manufacturing process for producing complex, high-quality parts from molten aluminum. This guide provides a comprehensive overview of the die-casting process, detailing its advantages, applications, and key considerations when choosing a die-casting service provider.

Aluminum Die Casting Manufacturing Process

Aluminum die casting involves forcing molten aluminum alloy under high pressure into a reusable mold, allowing for the creation of complex shapes. This method offers several advantages over other manufacturing processes, making it a preferred choice for various applications.

Advantages of Aluminum Die Casting

  • Lightweight: Aluminum's natural lightness makes die-cast parts ideal for applications where weight reduction is crucial, such as aerospace and automotive industries.
  • Strength: Despite being lightweight, aluminum die cast parts are strong and dimensionally stable. The high-pressure process creates parts with a dense, fine-grained structure, enhancing their mechanical properties.
  • Complex Shapes: Die-casting molds can be intricately designed to produce complex parts with thin walls, tight tolerances, and detailed features, reducing the need for extensive machining or assembly.
  • High Production Rates: The highly automated nature of aluminum die casting enables rapid, consistent production of large volumes of parts, making it cost-effective for high-demand applications.

Applications of Aluminum Die Casting

Aluminum die castings are utilized across various industries due to their versatility and desirable properties. Common applications include:

  • Automotive: Engine components, transmission housings, wheels, and structural parts.
  • Aerospace: Airframe components, engine parts, and landing gear components.
  • Electronics: Housings for electronic devices, heat sinks, and chassis components.
  • Consumer Goods: Appliance parts, sporting goods components, and tools.
  • Construction: Lighting fixtures, doorknobs, and valve components.

Comparison of Aluminum Die Casting with Sand Casting and Investment Casting

Sand Casting

  • Pros: Simpler and lower cost for low-volume production or one-off parts. Suitable for large and complex shapes.
  • Cons: Lower dimensional accuracy and surface finish compared to die casting. Requires more post-processing and is not ideal for high-volume production due to slower turnaround times.

Investment Casting

  • Pros: Excellent for intricate parts with tight tolerances and good surface finish. Can handle a broader range of alloys than die casting.
  • Cons: Higher cost per part compared to die casting. Not suitable for high-volume production due to the creation of individual molds for each cast. Limited to smaller part sizes.

Aluminum Die Casting

  • Pros: Ideal for high-volume production of complex parts with good dimensional accuracy and surface finish. Faster turnaround times compared to other casting methods.
  • Cons: Higher initial cost due to die creation. Less flexibility for design changes compared to sand casting. Limited to specific aluminum alloys suitable for high-pressure casting.

The Aluminum Die Casting Process

Aluminum die casting transforms molten aluminum into complex, high-precision parts. Key stages include:

Factors Affecting Die Design

  • Part Geometry: The shape, size, and wall thickness of the part heavily influence die design. Complex geometries may require multiple cores, slides, or movable elements within the die.
  • Production Volume: High-volume production demands robust die materials and designs to withstand repeated casting cycles.

Die Materials

  • Steel Alloys: Die-casting dies are typically made from robust, heat-resistant steel alloys that can endure high pressure and molten metal temperatures.
  • Heat Treatment: Dies undergo heat treatment processes to improve strength, durability, and resistance to thermal fatigue.

Die Casting Techniques

  • High-Pressure Die Casting (HPDC): The most common method, HPDC involves forcing molten metal into the die cavity under immense pressure (10-175 MPa) for rapid solidification and high production rates.
  • Low-Pressure Die Casting (LPDC): Uses lower pressure (0.1-0.7 MPa) and is suitable for parts with thin walls or complex geometries.
  • Gravity Die Casting: Relies on gravity to fill the mold cavity. Less automated and often used for low-volume production.

Aluminum Alloys for Die Casting

  • Common Alloys:

    • Al-Si Alloys (Silicon): Offer a good balance of castability, machinability, and strength. Widely used for general-purpose die castings.
    • Al-Cu Alloys (Copper): Provide higher strength and hardness but lower corrosion resistance and machinability.
  • Alloy Selection Considerations:

    • Strength: Al-Cu alloys are ideal for high-strength applications.
    • Corrosion Resistance: Al-Mg alloys are preferred for parts exposed to harsh environments.
    • Machinability: Al-Si alloys are favored for parts requiring post-casting machining.

Die Casting Process Steps

  1. Mold Preparation and Clamping: Die halves are cleaned, lubricated, and securely clamped to form the mold cavity.
  2. Metal Melting and Injection: Molten aluminum alloy is poured or injected into the mold cavity at high pressure.

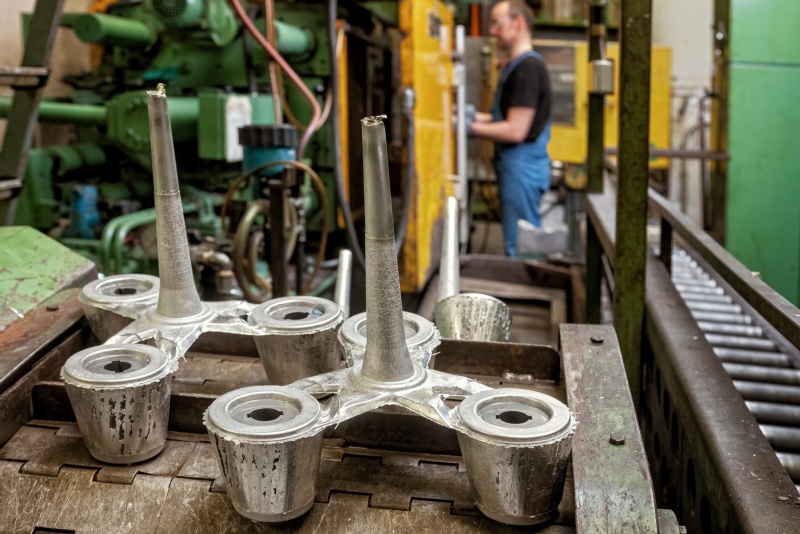

  3. Solidification and Ejection: The aluminum cools and solidifies rapidly within the mold. Once solidified, the die is opened, and the casting is ejected.

Quality Control and Finishing for Aluminum Die Casting

Maintaining quality in aluminum die casting is crucial. Quality control and finishing techniques include:

Importance of Quality Control in Die Casting

  • Dimensional Tolerances and Inspection Methods: Precise measurements using calipers, gauges, and coordinate measuring machines (CMMs) ensure parts meet specifications.
  • Porosity and Surface Defect Detection: X-ray inspections and fluorescent penetrant testing (FPT) detect air pockets and surface defects.
  • Mechanical Testing: Testing for properties like tensile strength, yield strength, and elongation ensures the casting meets performance standards.

The Future of Aluminum Die Casting

Advancements in aluminum die casting are shaping its future:

  • Die Design Software and Simulation: Advanced software optimizes die design, simulating casting processes to identify potential issues and ensure efficient metal flow and part quality.
  • Automation and Robotics: Increased automation with robots enhances productivity and consistency in tasks like material handling, part ejection, and finishing.
  • Sustainable Practices: Focus on reducing environmental impact through recycled aluminum alloys, energy-efficient casting processes, and improved waste management.

Emerging Applications

  • Electric Vehicles: Lightweight, high-performance parts for electric vehicles, including battery housings and structural frames.
  • Aerospace: Advanced aluminum alloys and casting techniques for next-generation aircraft parts.
  • Biomedical Devices: Aluminum die castings with improved biocompatibility for certain medical implants.

Aluminum Die Casting Machine

An aluminum die-casting machine is a high-pressure metalworking tool that creates complex shapes from molten aluminum alloy. It functions as follows:

  1. The Mold (Die): A reusable steel mold, specifically designed for the desired part, consisting of two halves (fixed and movable). The die cavity replicates the exact shape of the part.
  2. Molten Metal: Aluminum alloy is melted in a furnace and injected into the die cavity at high pressure.
  3. High Pressure: Ensures the molten metal fills all mold details.
  4. Solidification: Aluminum cools and solidifies within the mold.
  5. Ejection: The die opens, and the finished casting is ejected.

Benefits of Aluminum Die Casting Machines

  • Production of Complex Parts: Enables the creation of intricate shapes with tight tolerances.
  • High Production Rates: Automation and rapid cycle times allow efficient and cost-effective production.
  • Dimensional Accuracy: Ensures consistent and precise part dimensions.
  • Good Surface Finish: Rapid solidification often results in a good surface finish, minimizing post-processing needs.

Aluminum die casting offers a compelling combination of speed, precision, and versatility for producing complex, high-quality parts. This guide has explored the process, its advantages, applications, and considerations when selecting a service provider.
