Introduction to Die Casting Draft Angle

Die casting is an integral manufacturing process employed by various industries for the production of large volumes of metals, utilizing modern technologies and established methodologies. Despite its importance, every step of the die casting process plays a crucial role in determining the quality of the final product.

Now, let's delve into the concept of die casting draft angle, understanding its significance, and exploring its contribution to ensuring the production of high-quality metal parts. Stay with us to unravel the details!

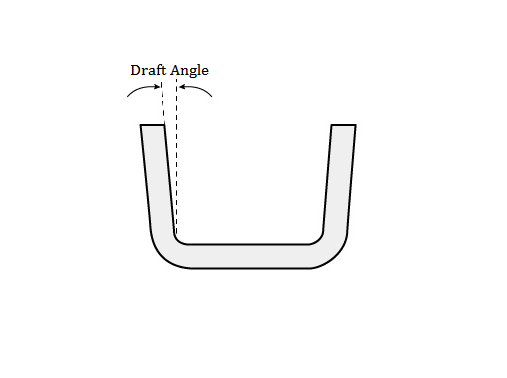

Die Casting Draft Angle – A Simplified Definition Simply put, a draft angle is an inclined angle or slope integrated into the vertical walls of the die casting mold. Its purpose is to facilitate the smooth ejection of the cast from the die cavity.

The draft angle is strategically placed on surfaces guiding the die's movement. Its absence may lead to the part peeling off due to excessive friction or, worse, causing the molded metal to adhere to the mold. Such scenarios can result in potential damage and increased costs when attempting to force the metal out under pressure.

So, is it possible to design a die-casting draft without incurring unwanted expenses? Let's explore this, along with the notable benefits of incorporating the correct draft angle.

The Remarkable Benefits of Considering Draft Angle in Die Casting

1. Easier Part Ejection: Draft angles facilitate the smooth ejection of metal parts from the mold. Without them, the removal process becomes challenging, potentially causing damage to the part or sticking. The inclusion of draft angles provides a slight taper, enabling easy and damage-free removal.

2. Extended Die Casting Tooling Life: Die-casting tooling, the mold through which molten metal is injected, can be reused to produce similar metal parts. Neglecting the drafting angle may result in overhanging walls, causing the parts to get stuck and leading to tool wear when force is applied for removal. Drafting angles reduce friction during ejection, contributing to prolonged tool life.

3. Improved Surface Finish: Accurate draft angles contribute to clean and smooth removal of metal parts from the mold, resulting in high-quality finished products. This improvement in surface finish not only enhances the aesthetic appeal but also reduces the need for additional surface finishing methods, minimizing costs.

How to Design a Die Casting Draft? The calculation of the draft angle in die casting depends on various factors:

1. Type of Metal: Understand the material properties of the alloy being used. Different metals may require different drafting angles due to variations in thermal expansion and contraction rates. For instance, aluminum and zinc alloys have distinct shrinkage rates that need to be considered in the tool design.

2. Type of Metal Surface: Tailor the draft angle to suit the specific characteristics of the metal surface. Different angles may be required for textured parts, vertical surfaces, or metal-on-metal molding components. Adjust the draft angle accordingly to ensure easy ejection and high-quality results.

3. Wall Thickness: Consider the thickness of the mold walls, as overly thick walls can impact the filling process and result in challenging ejection. Pay attention to the draft angle setting and calculate the demolding force for medium-moving fixed molds to avoid common problems and losses.

In conclusion, incorporating the right draft angle in die casting is crucial for ensuring the efficiency of the manufacturing process and the production of top-notch metal parts. By understanding the specific requirements of the metal being used and tailoring the draft angle accordingly, manufacturers can achieve optimal results with minimal challenges and costs.
